GLYCERIN BATH BEAKER DYEING MACHINE
Ultra Low Water Consumption
Save Processing Time
Save Energy & Steam
Save Machine Floor Space
Save Dyestuff Mixture
Excellent Dyeing Result

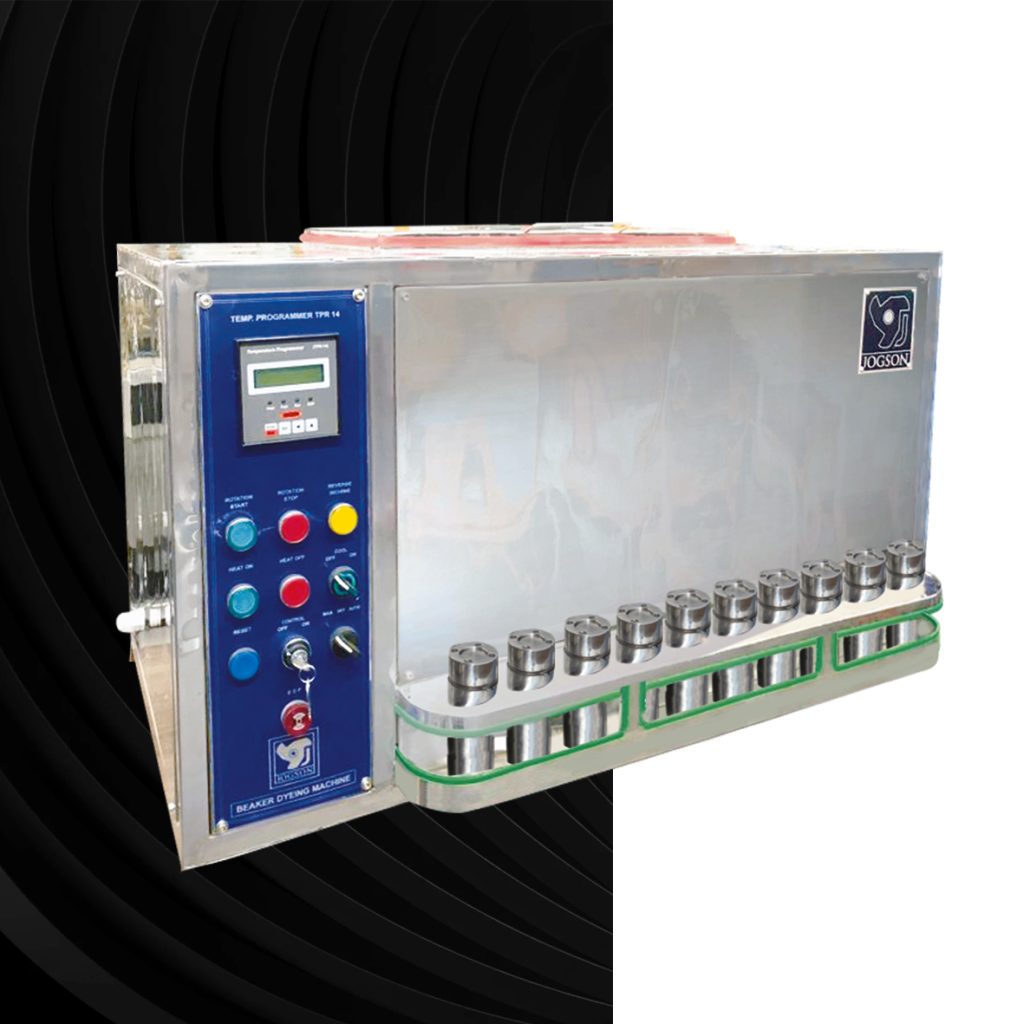

Glycerin Bath Beaker Dyeing Machine
- Offered with capacity from 10 kg up to 700 kg per batch.
- Two or more machines can be coupled for larger batch size up to 1400 kg.
- It's a front-loading type machine; Overhead hoist & platform not required.
- Ultra low MLR of 1:3 (Fully Flooded).
Heating Options Available
Steam
Oil
Direct Fire
Electricity
JBD MODEL
6 6 10 10
NO OF BEAKERS
150ML 250ML 150ML 250ML
ELECTRIC LOAD (KW)
6 6 10 10
ELECTRIC LOAD (KW)
4.5 4.5 4.5 6.5
Salient Features
- Machine body and all parts coming into contact with the dye liquor are made of AISI SS 316TI/316L, highly corrosion resistant.
- MLR of 1:20
- The apparatus comprises of tank, beaker and gear box
- Beakers are capable of with standing pressure upto 6.0 Kg/cm2
- Control panel with JOGSON dyeing controller & touch interface (Optional)
- Limit switch installed at top cover for operator safety
- Heating & cooling coil made of stainless steel AISI SS 316TI/316L
- Gear driven energy efficient electric motor
- Ideal for recipe developing & shade matching for large batches
- Simple installation at slab of dying lab
Advantages
- Uniform dyeing
- Hassle free plug and play model
- Low running cost
- Semi automatic operation
- Inching switch for rotation
- Ensures a sound free and smooth working
- Suitable for nearly all fibers and narrow fabrics
- Longer functional life
- Unmatched performance
Technical Data
- Maximum Design Temperature 140°C
- Heating Gradient 25°C – 130°C approx at 1.5°C /min. (Dry Saturated Steam pressure at 7 bar)
- Cooling Gradient 130°C – 85°C approx at 1.5°C/min. (Cold Water of 25°C at 3 bar)
